Deck Size: 54" Deck | Kawasaki FX730V 24 HP | 9.730300.6 (2024)
Price:
$7,999.99 $8,739.99

Description

Price includes Father's day rebate (Available Till 06/30)

Financing for 48 months available
As Low As $182.99 for 48 months

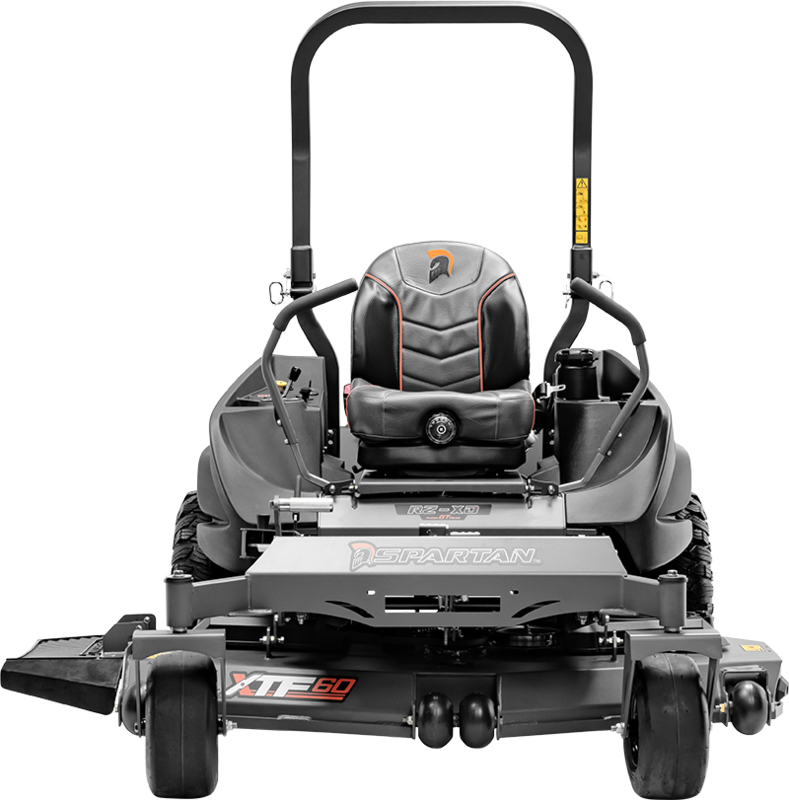

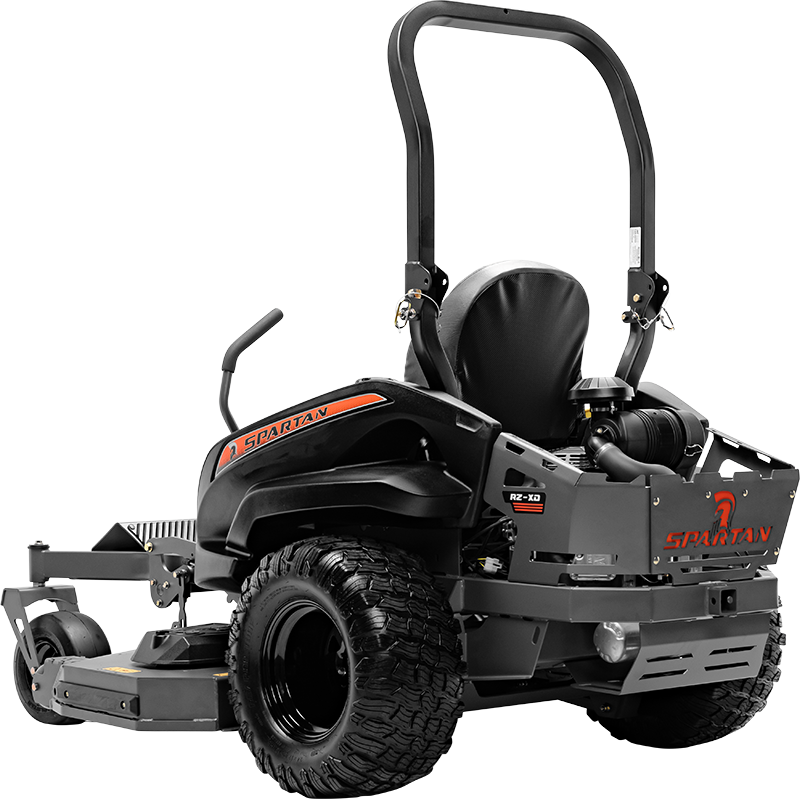

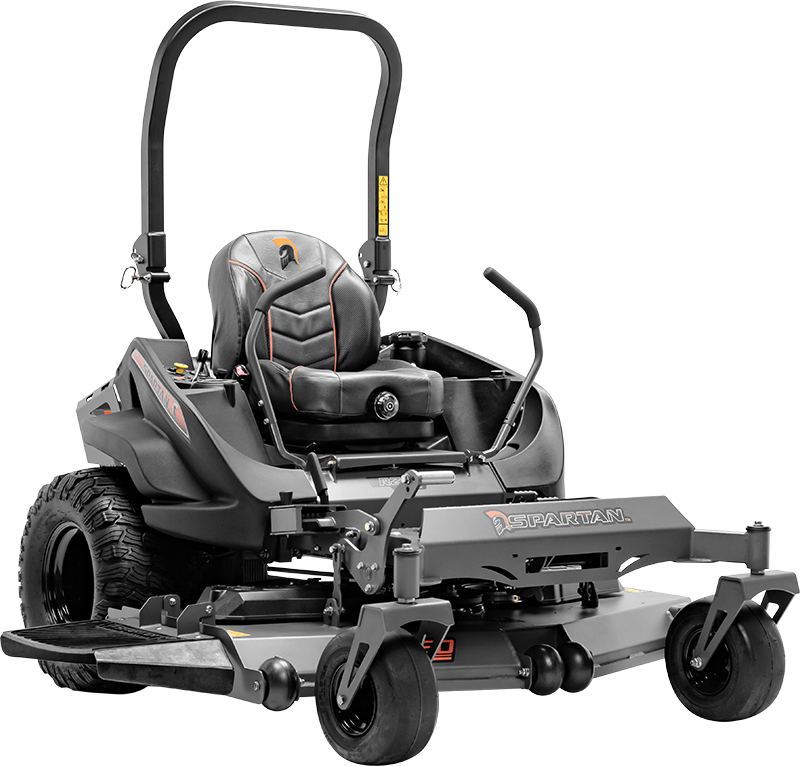

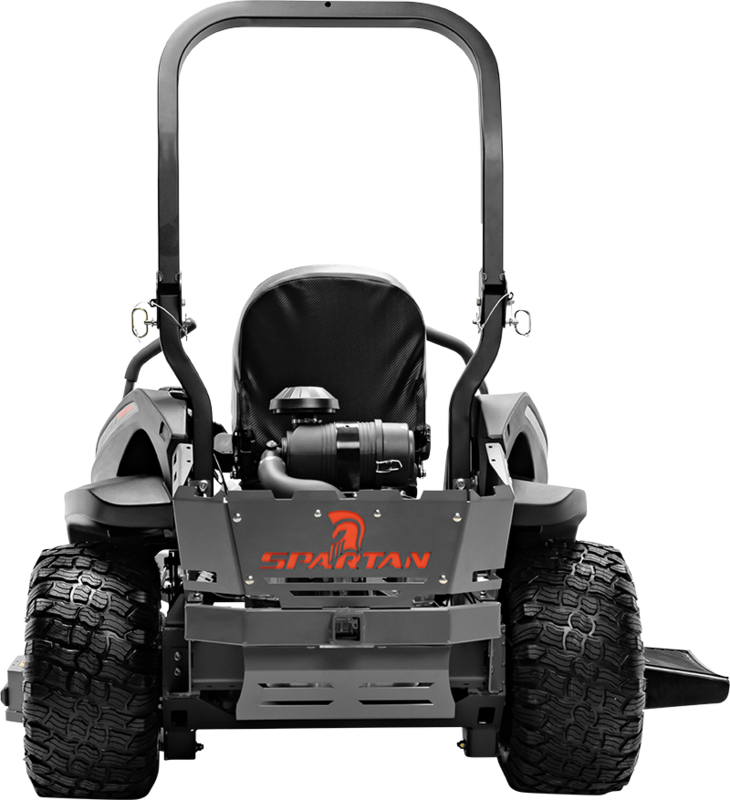

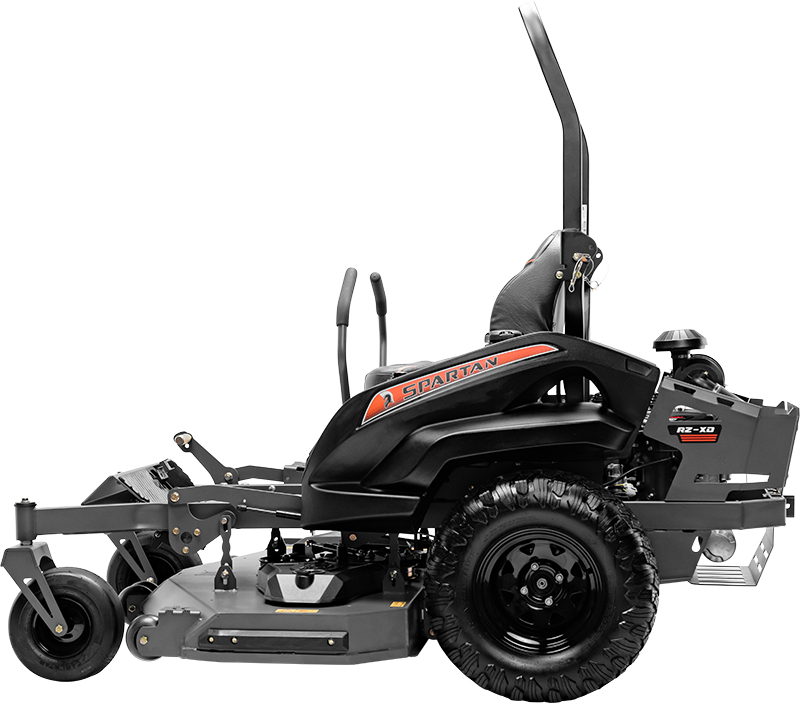

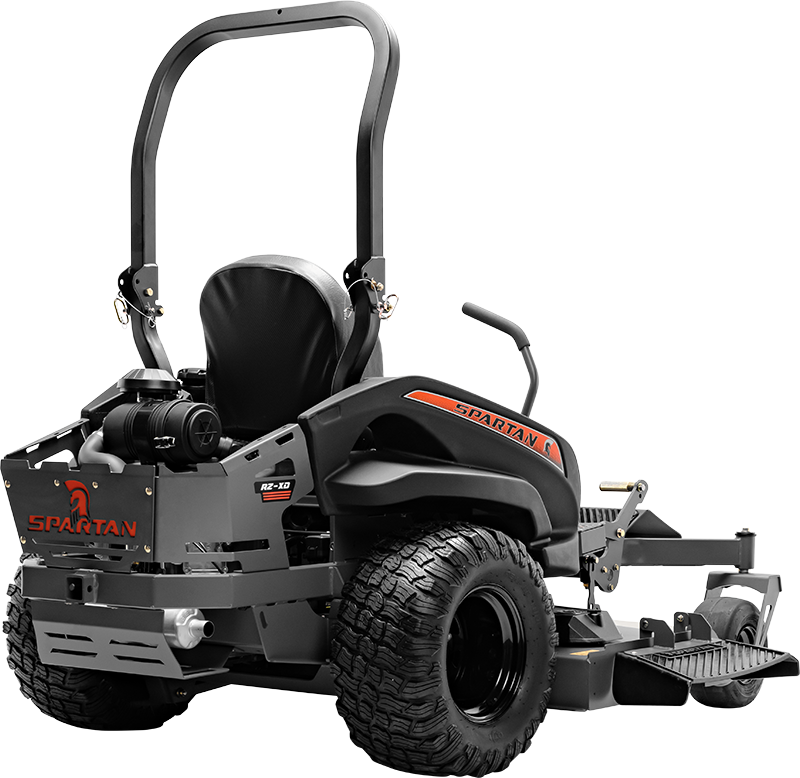

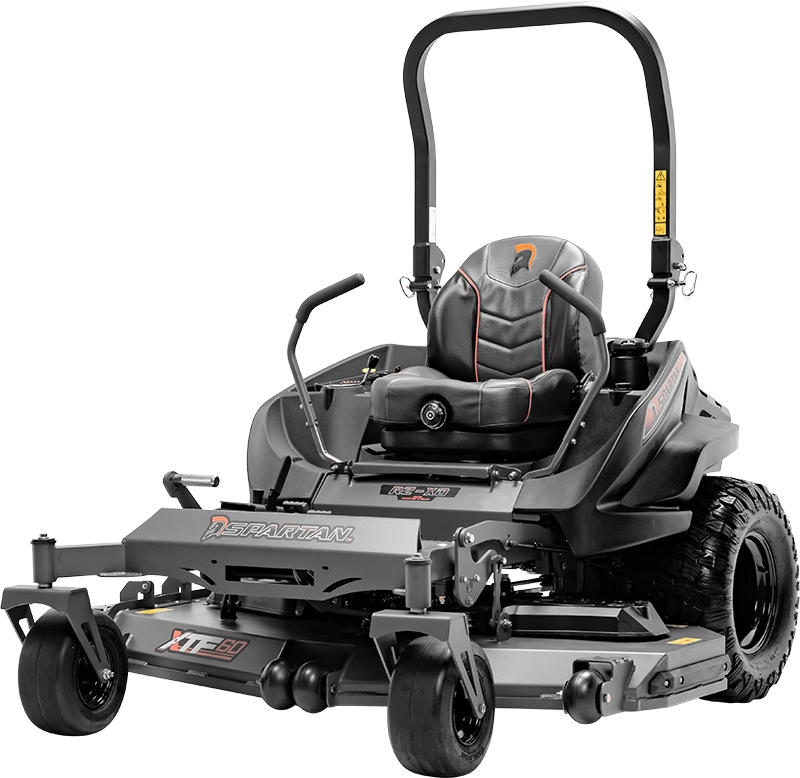

The Spartan RZ-XD  is a commercial-grade residential zero-turn mower featuring a 54/60-inch fabricated 7-gauge steel deck, 24 HP Kawasaki FX730 engine, and 24-inch rear tires. Designed for 2+ acres, it includes Parker 10cc transaxles, a 9.5-gallon fuel tank, a 360-degree floating seat platform, and top speeds up to 9 MPH.

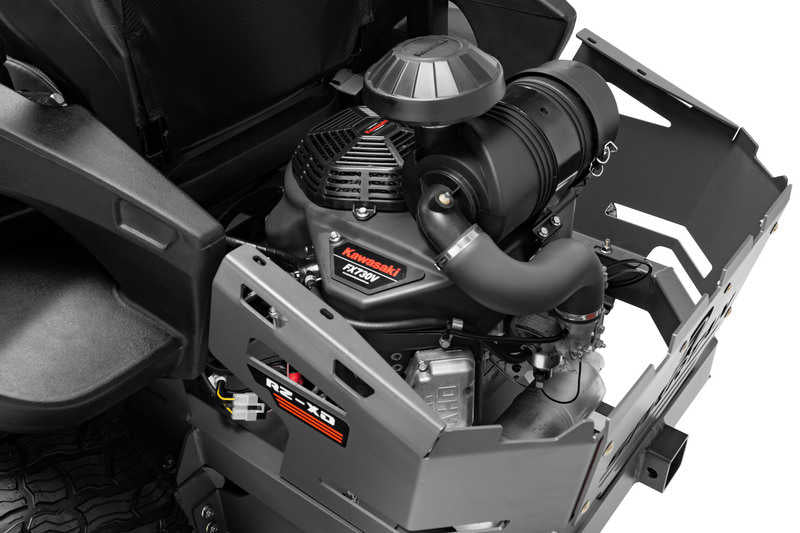

Engine
  • Kawasaki FX730V
  • Horsepower: 24 HP
  • Fuel Capacity: 9.5 Gallons

Drive Line

  • Hydraulic Drive: Parker HTE Transaxles - 10cc Drive Motors
  • Hydraulic Drive Torque: Continuous - 262 ft-lb | Max Torque - 406 ft-lb
  • Hydraulic Drive Maintenance: After First 250 Hours, Every 500 Hours After
  • Front Tires: 13" Bias Ply
  • Drive Tires: 24x12-12 Reapers
  • Wheel Type: Steel
  • Speed (F/R): Forward - Up to 9mph | Reverse - Up to 5mph
Features
  • Acreage: 2+
  • Seat: Dymetrol Seat with 360 Degree Floating Seat Platform
  • Steering Levers: Adjustable Up and Down

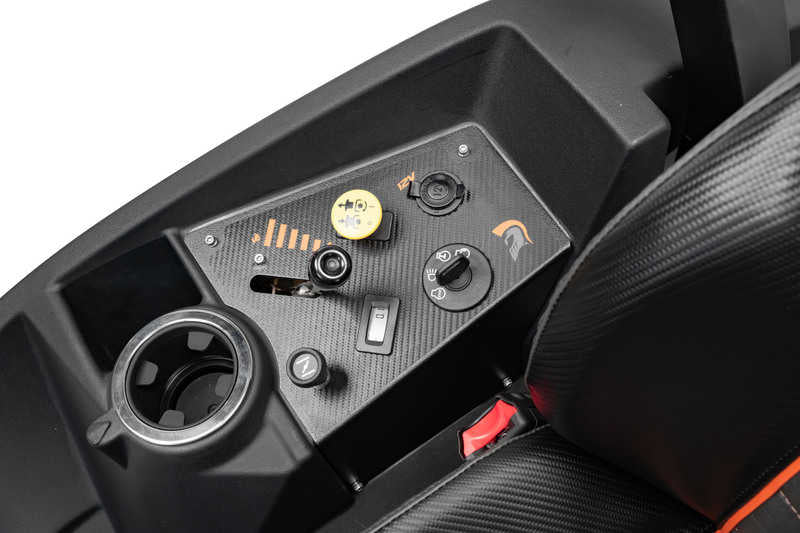

  • Control Panel LCD Display: Hour Meter - Engine Hours, Tachometer
  • Control Panel LED Warning Indicators: N/A
  • Ignition: Key Switch
  • Auxiliary Power: 12v Outlet
  • Storage: Phone Holder, Cup Holder, and Deep Storage Tray
  • Hitch: 2" Rear Receiver
  • LED Light Bar: Full Beam

Cutting Deck

  • Deck Size: 60"
  • Deck Depth: 5" Deep, Reinforced 7 Gauge Full-Floating Deck
  • Deck Lift: Foot Operated with Shock Assist

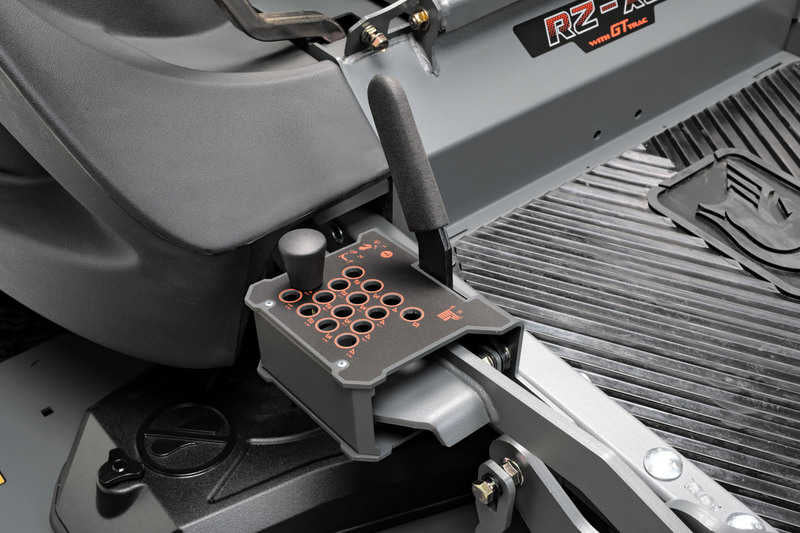

  • Deck Adjustment: Magnetic Pin Height Adjustment
  • Cut Height: 1.5" to 4.75" with 14 Cut Heights
  • Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
  • Parking Brake: Foot Operated
  • Frame: 1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame

Measurements

  • Width: 62.5"
  • Weight: 907 - 1,095 lb
  • Length: 84"
  • Height: 75" with ROPS Up - 54" with Folding ROPS Down

Warranty

  • Engine Warranty: 3 Year
  • Leading Deck Edge Warranty: 3 Year
  • Hydraulic Drive Warranty: 3 Year / 400 Hour
  • Control Panel Warranty: N/A
  • Product Warranty: 3 Year / 400 Hour
  • Battery Warranty: 6 Months
  • Belt Warranty: 90 Days
    • 1 1/2" x 3" Tubular Welded Frame
    • Full Beam LED Light Bar
    • Bias Ply Front Tires
    • Magnetic Pin Height Adjustment
    • Folding ROPS
    • GT Trac Stabilization
    • 18,500 FPM Blade Tip Speed
    • Protective Side Deck Trim
    • Upgraded Spindles
    • 7-gauge XTF Deck
    • Foot Operated Parking Brake
    • 12V Outlet
    • Large Cup Holder
    • Phone Holder in Console
    • Storage Tray in Console
    • 2" Receiver Hitch
    • Foot Operated Shock Assisted Deck Lift
    • Anti-Vibration Floor Mat
    • Ultra Premium Dymetrol ® Adjustable 3" Travel Seat



    • Warranty: Full Warranty: 3 Year / 400 Hour Residential
      • Deck: Lifetime leading edge
      • Hydraulic drive: 3-Year / 750 Hour
