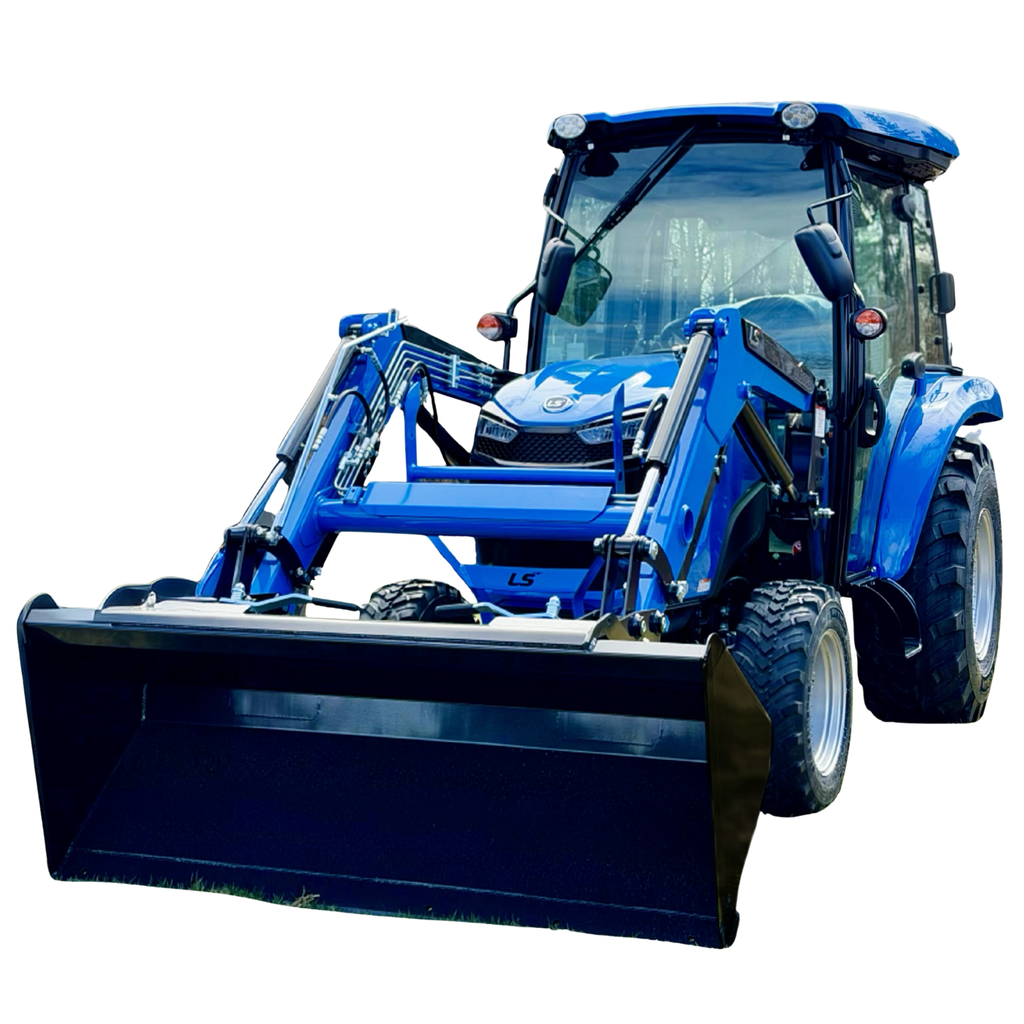

LS Tractor MT242HC (Cab) Compact Tractor WITH LOADER - 42.5 HP (19003056)


Price:
Sale price$38,440.00 Regular price$44,440.00

Description



$6,000 INSTANT CASH REBATE included in price

OR

As low as $429 per month!

Key Features

  • Cab with Factory Air Conditioning and Heat
  • Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
  • Much improved seat comfortability
  • Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals)
  • Bluetooth radio
  • Operator guide lamps (Courtesy entry & exit lamps)
  • New hood design (LS Family look), Grill open space plus 20%
  • Full LED lamp applied(Head lamp, Front & Rear work lamp)
  • 1 Inch large tire size and four different tire options
  • Larger lifting capacity, loader lifting capacity 2,506 lbs.
  • Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.
  • TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
  • E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed and lift.

Front End Loader: LL3003

  • Bucket (in.): 66
  • Maximum Lift height (in.): 94.3
  • Clearance with Attachment Dump (in.): 67
  • Reach at Maximum Height (in.): 14.4
  • Maximum Dump Angle (deg.): 48
  • Maximum Rollback Angle (deg.): 42.5
  • Digging Depth (in.): 4.8
  • Overall Height in Carry Position (in.): 51.2
  • Lift Capacity (Bucket Pivot Pin, MAX, Height) (lbs): 2,063
  • Lift Capacity (Pivot pin @ 1.5m) (lbs.): 2,506
  • Breakout Force(@ Pivot pin) (lbs.): 3,723
  • Approx. Weight (Loader w/o Bucket) (lbs.): 741

WARRANTY

Some companies make you pay extra for an extended warranty. LS Tractor offers a 6-year limited powertrain warranty, including parts and labor, on most of the tractors we sell.

2-year bumper to bumper* protection that comes with every LS Tractor. There’s no deductible, and not a lot of exclusions. Compare our short, easy to understand, no-nonsense warranty to the others and see for yourself that LS Tractor has you covered.

ENGINE

  • Type: 4-cylinder, Liquid-cooled, Diesel, CRDI
  • Model (Tier 4): Yanmar 4TNV88C
  • Engine HP (Gross) :   42.5
  • PTO HP:    34.8
  • Rated Speed (RPM):    2,600
  • Displacement (cu. in):    133.6
  • Fuel Tank Capacity (gal)   : 11.4
  • Alternator (V-A)  :  12V – 55 Amps

DRIVE TRAIN

  • Transmission Type : Hydrostatic Drive (Linked Pedal)
  • No. of Speed :   3 Ranges
  • Brakes:    Wet, Multi-disc
  • Steering :   Hydrostatic Power Steering

PTO

  • Type: Independent
  • Rear PTO: Standard (540 rpm)

HYDRAULIC SYSTEM

  • Control System:    Position
  • Implement pump (gpm):    6.7
  • Steering pump (gpm):    5
  • Total flow (gpm) :   11.7
  • Category, 3 pt hitch:    CAT I
  • Hitch Lift capacity, lbs (Hitch end):    1,808
  • Remote Valves: 1 Pair

DIMENSION

  • Overall length (Frame to Link, in.): 125
  • Overall width with tires (in.): 66
  • Wheelbase (in.): 74
  • Height to top (in.):  90

TIRE SIZE (OPTIONS)

  • Ag Front/Rear: 7 - 14 / 11.2 - 24
  • IND Front/Rear: 27x8.50-15 / 43x16.00-20
  • VT Front/Rear: 27x8.50-15 / 43x16.00-20
  • HYB Front/Rear: 27x8.50-15 / 43x16.00-20
  • Turf Front/Rear: 25x8.50-14 / 41x14.00-20

WEIGHT

  • Total weight without ballast (lbs.) :   3,805
