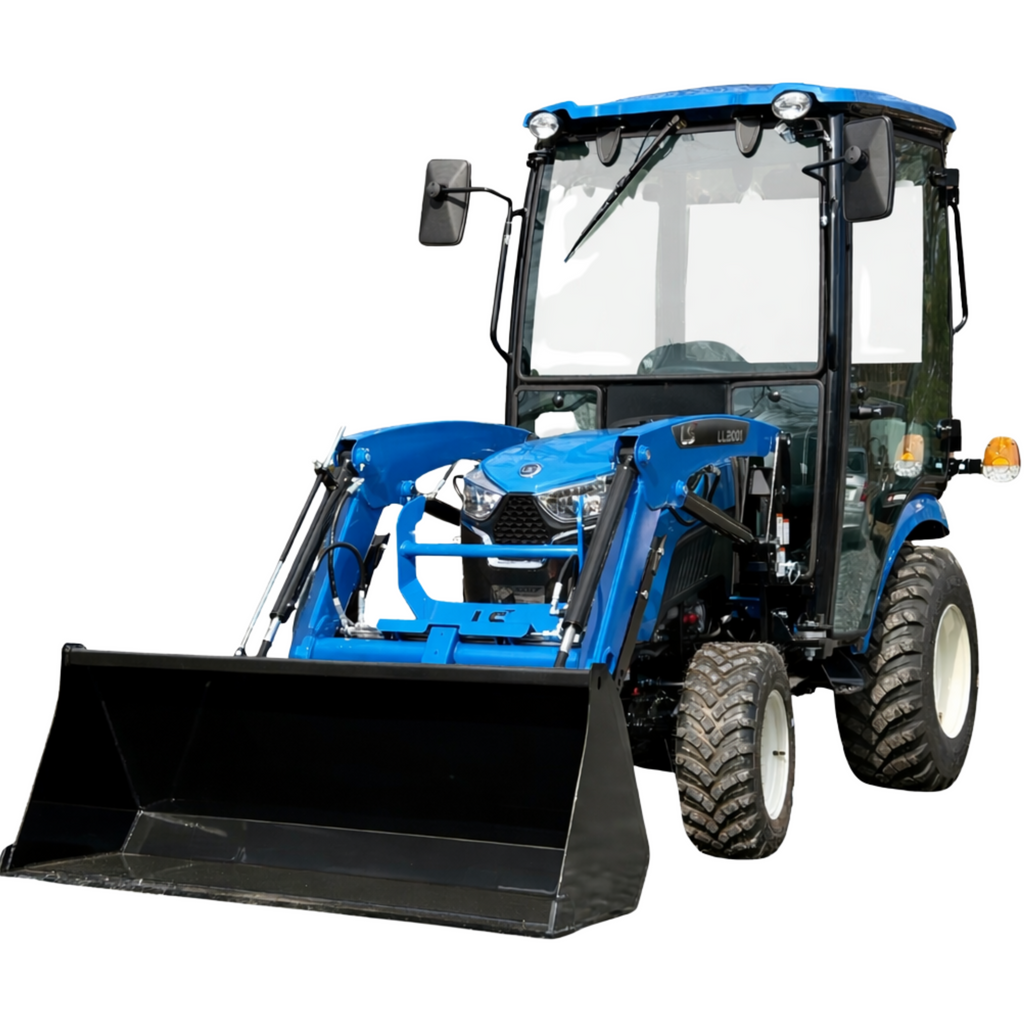

LS Tractor MT225S Compact Tractor WITH CAB & LOADER - 24.7 HP (19002363)


Price:
Sale price$27,990.00 Regular price$30,990.00

Description



$3,000 INSTANT CASH REBATE included in price

OR

As low as $296 per month!

Key Features

    • Excellent Visibility
    • Ergonomically Designed Integrated Loader Joystick
    • Ergonomic Design Featuring Electric PTO
    • Transmission and PTO Engagement Levers
    • Standard Cupholder
    • 2 Pedal 3 Range Hydrostatic Transmission
    • Deck Height Adjustment
    • Advanced Lighting

    LS FIELD CAB - LC2200

    • Cab Heat – Stay comfortable and productive in cold weather conditions.
    • Interior Lighting – Illuminates the operator area for low light operation.
    • Side Mirrors – Improves visibility and awareness around the tractor.
    • Excellent Visibility – Spacious cab design provides clear sightlines for safe operation.

    FRONT END LOADER - LL2001

    • Maximum Lift Height (in.): 85.7
    • Clearance with Attachment Dump (in.): 63.3
    • Reach at Maximum Height (in.): 25.1
    • Maximum Dump Angle (deg.): 50
    • Maximum Rollback Angle (deg.): 38
    • Digging Depth (in.): 3.7
    • Overall Height in Carry Position (in.): 43.2
    • Lift Capacity (@ Pivot Pin) (lbs.): 1,111
    • Breakout Force (@ Pivot Pin) (lbs.): 1,426
    • Approx. Weight (Loader w/o Bucket) (lbs.): 560

    WARRANTY

    Some companies make you pay extra for an extended warranty. LS Tractor offers a 6-year limited powertrain warranty, including parts and labor, on most of the tractors we sell.

    2-year bumper to bumper* protection that comes with every LS Tractor. There’s no deductible, and not a lot of exclusions. Compare our short, easy to understand, no-nonsense warranty to the others and see for yourself that LS Tractor has you covered.

    ENGINE

    • Type:    3 Cylinder Indirect-injection, Water-cooled
    • Model (Tier 4):  Yanmar 3TNV80F
    • Engine HP (Gross) :   24.7
    • PTO HP:    19.3
    • Rated Speed (RPM):    2,800
    • Displacement (cu. in):    77.3
    • Fuel Tank Capacity (gal)   : 6.79
    • Alternator (V-A)  :  12V – 40 Amps

    DRIVE TRAIN

    • Transmission Type :   HST
    • No. of Speed :   3 Ranges
    • Brakes:    Wet, Multi-disc
    • Steering :   Hydrostatic Power Steering

    PTO

    • Type:    Independent
    • Mid PTO: Optional (2500 rpm)
    • Rear PTO: Standard (540 rpm)

    HYDRAULIC SYSTEM

    • Implement pump (gpm): 5.6
    • Steering pump (gpm):  3.7
    • Total flow (gpm) :  9.3
    • Category, 3 pt hitch:    CAT I
    • Hitch Lift capacity, lbs (Hitch end): 1,896

    DIMENSION

    • Overall length (Frame to Link, in.):    111.9
    • Overall width with tires (in.):    48.7
    • Wheelbase (in.):   63.4
    • Height to top (in.):   86.4

    TIRE SIZE

    • IND Front / Rear:    23 x 8.5 – 12 / 12 – 16.5
    • Versa Turf Front / Rear:    12 x 16.5/23 x 8.5

    WEIGHT

    • Total weight without ballast (lbs.) :   1,764
