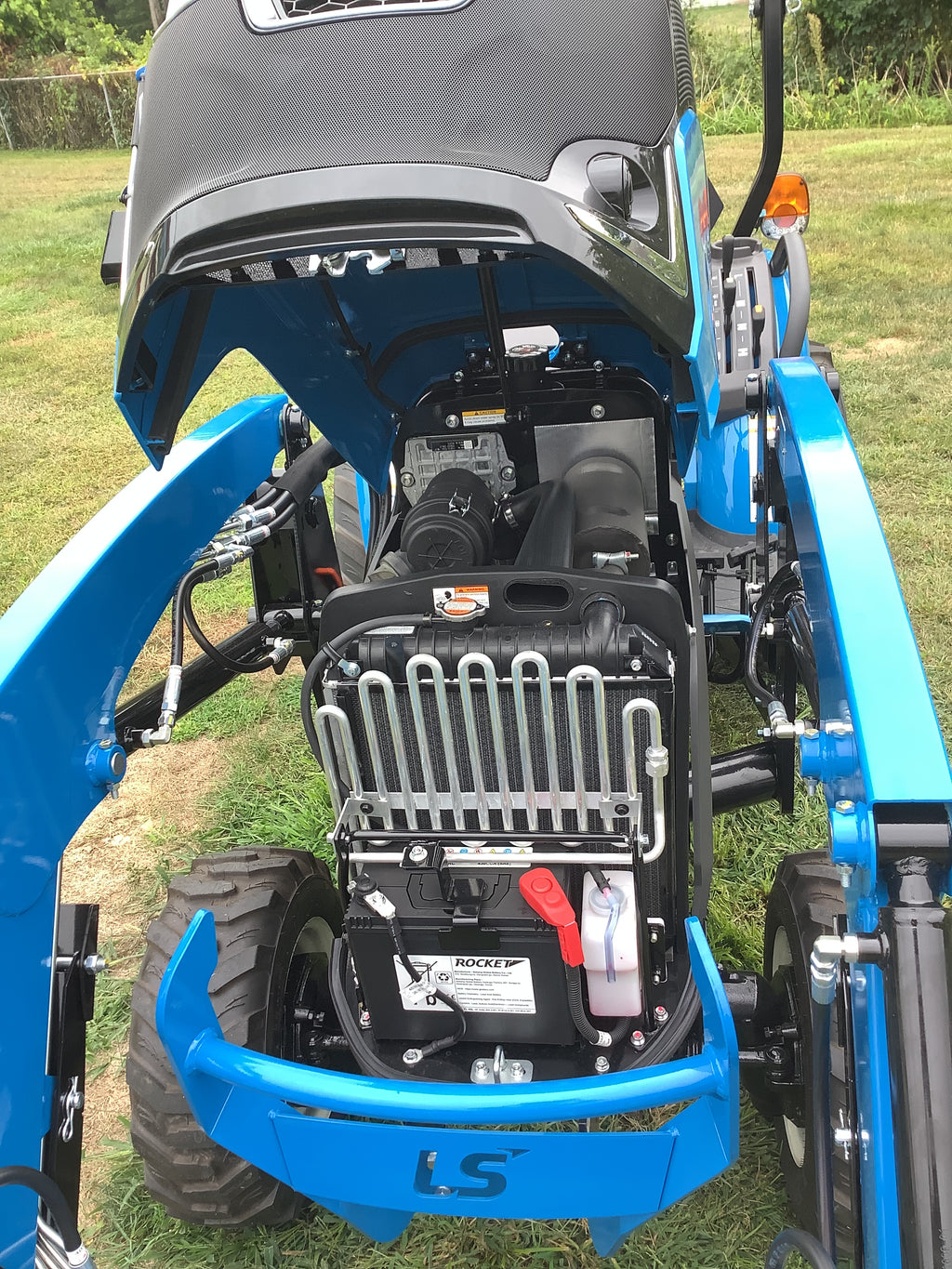

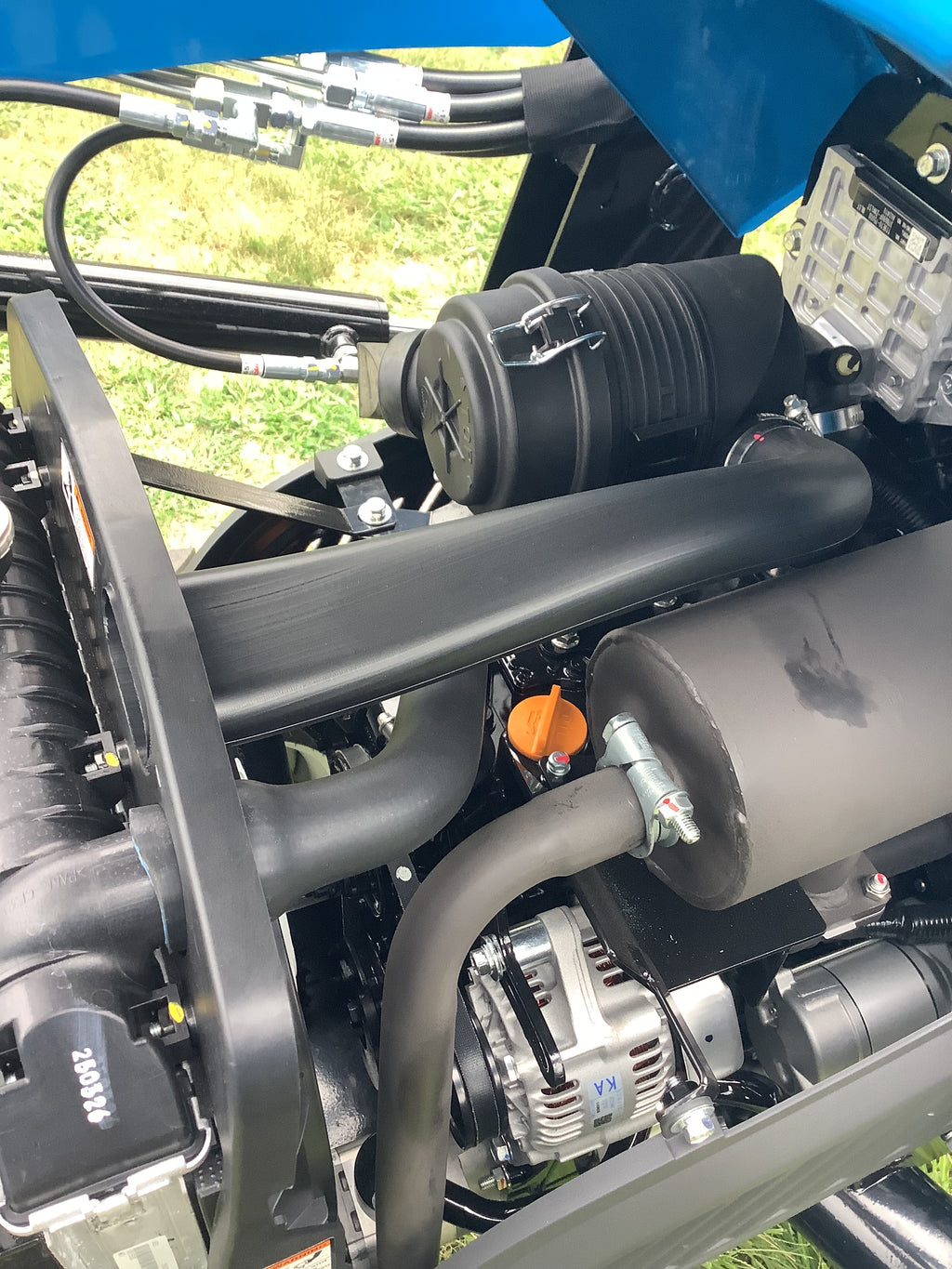

ENGINE
- Type: 3 Cylinder IDI
- Model (Tier 4): 3TNV80F-ZXKLST(YANMAR)
- Engine HP (Gross) : 24.7
- PTO HP: 19.3
- Rated Speed (RPM): 2,800
- Displacement (cu. in): 77.3
- Fuel Tank Capacity (gal) : 6.79
- Alternator (V-A) : 12V – 40 Amps
DRIVE TRAIN
- Transmission Type : HST
- No. of Speed : 3 Ranges
- Brakes: Wet, Multi-disc
- Steering : Hydrostatic Power Steering
PTO
- Type: Independent
- Rear, rpm: 540 (Standard)
- Mid PTO: 2,500 (option)
HYDRAULIC SYSTEM
- Control System: Position
- Implement pump (gpm): 5.6
- Steering pump (gpm): 3.7
- Total flow (gpm) : 9.3
- Category, 3 pt hitch: CAT I
- Hitch Lift capacity, lbs (Hitch end): 1,896
- Remote Valves: 1 pair (Optional)
DIMENSION
- Overall length (Frame to Link, in.): 111.9
- Overall width with tires (in.): 48.7
- Wheelbase (in.): 63.4
- Height to top (in.): 86.4
TIRE SIZE
- IND Front / Rear: 23 x 8.5 – 12 / 12 – 16.5
- Versa Turf Front / Rear: 12 x 16.5/23 x 8.5
WEIGHT
- Total weight without ballast (lbs.) : 1,764
