LS Tractor MT122 Sub-Compact Tractor WITH LOADER - 21.5 HP (22100772)


Tire Package: Versa Turf Front/Rear: 18×18.5 – 10/26 x 12.0 – 12
Price:
Sale price$14,499.99 Regular price$16,999.99

Description

$2,500 INSTANT CASH REBATE included in price

OR

0% Financing for 120 months! As low as $142 per month!

Key Features

  • 4WD (Front Wheel Mechanical Assist) – The MT125-24.7HP Sub-Compact Tractor features 4WD so you can get all your heavy duty pulling with no scuff. Go from 2WD to a 4WD with a simple move of a lever.

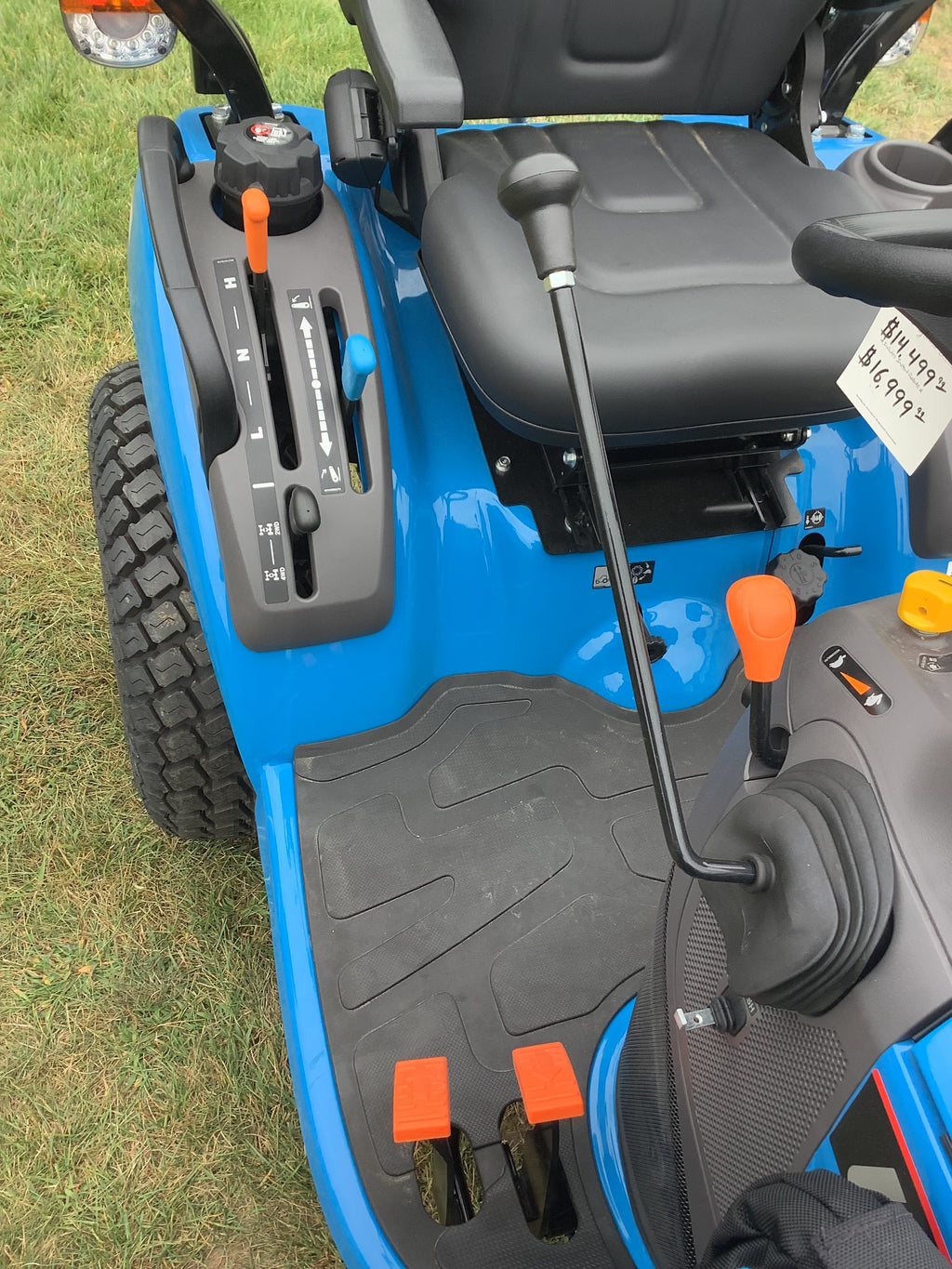

  • Dual Pedal, 2 Range HST – Our MT125 model features the highly preferred dual pedal. Easier and more comfortable than rocker pedals and smoother switch.
  • Independent PT – Easiest PTO to operate that can be turned on or off with a switch.
  • PTO Selector Switch – Allows you to select the rear-PTO, mid-PTO or both.
  • Standard Mid PTO – 2000 RPM Mid PTO for optional 60” mid-mount mower or 50” front mount snow blower.
  • Standard Hydrostatic Power Steering – Ditch the mechanical link—introducing hydrostatic power steering for ultimate flexibility, parts costs, and assemble-ability. This feature makes turning easier, improves control and reduces fatigue.
  • Standard Foldable Props – Introducing foldable ROPS for storage allowance in low clearance buildings or sheds.

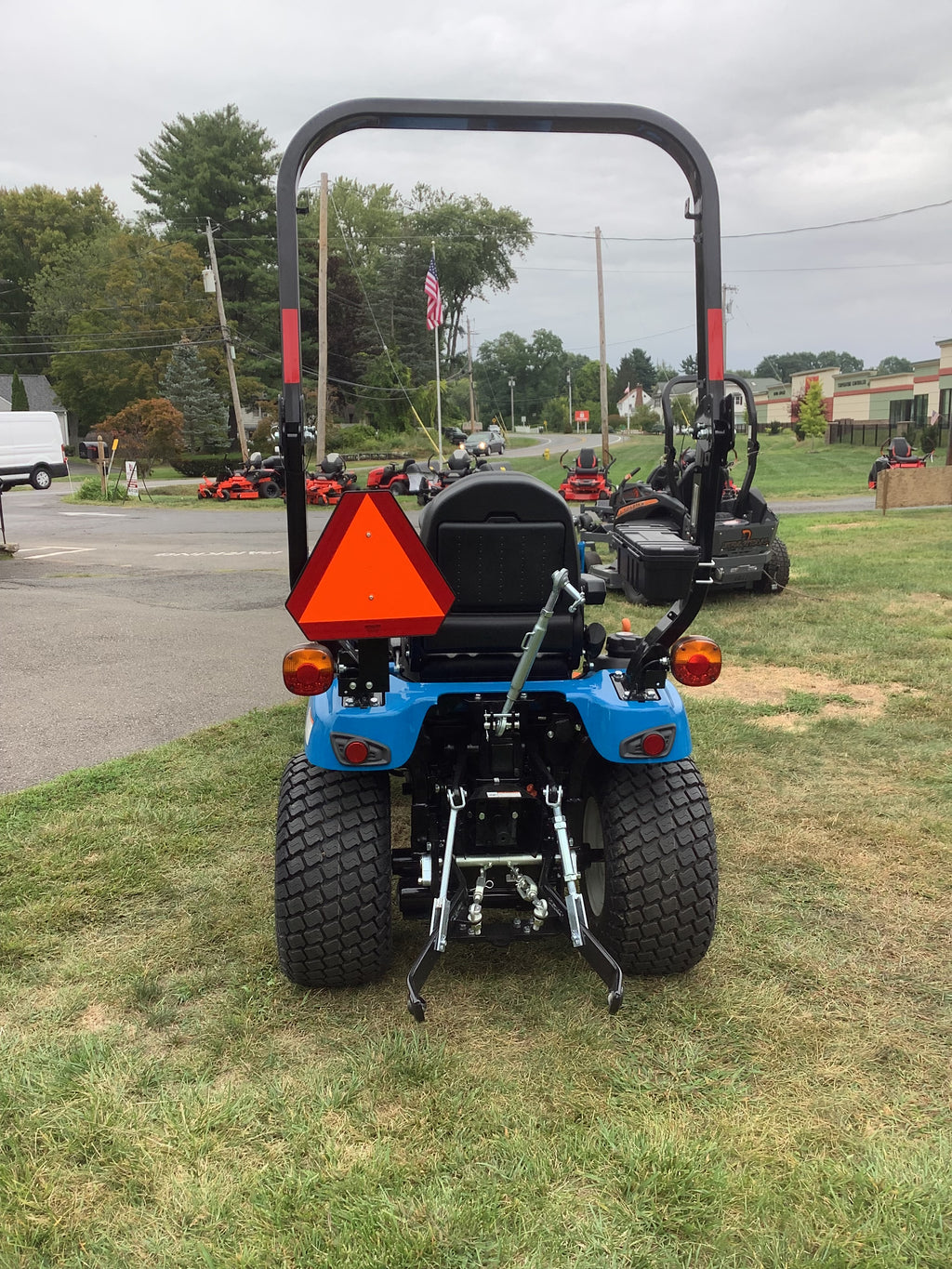

  • 3-Point Hitch – Category 1 with a hitch lift capacity of 966 lbs. is smooth and responsive.
  • Ergonomically Designed 3-Point Hitch – Category 1 with a hitch lift capacity of 966 lbs. is smooth and responsive.
  • Ergonomically Designed 3-Point Hitch Controls – Easily accessible for maximum comfort and convenience with hydraulic position control.
  • OPTIONAL: Easily Adjust Mowing Height – Adjusting the cutting height for the available 54" or 60″ mid-mount mower is as easy as turning a dial.
  • Toolbox – Convenient storage keeps tools handy.

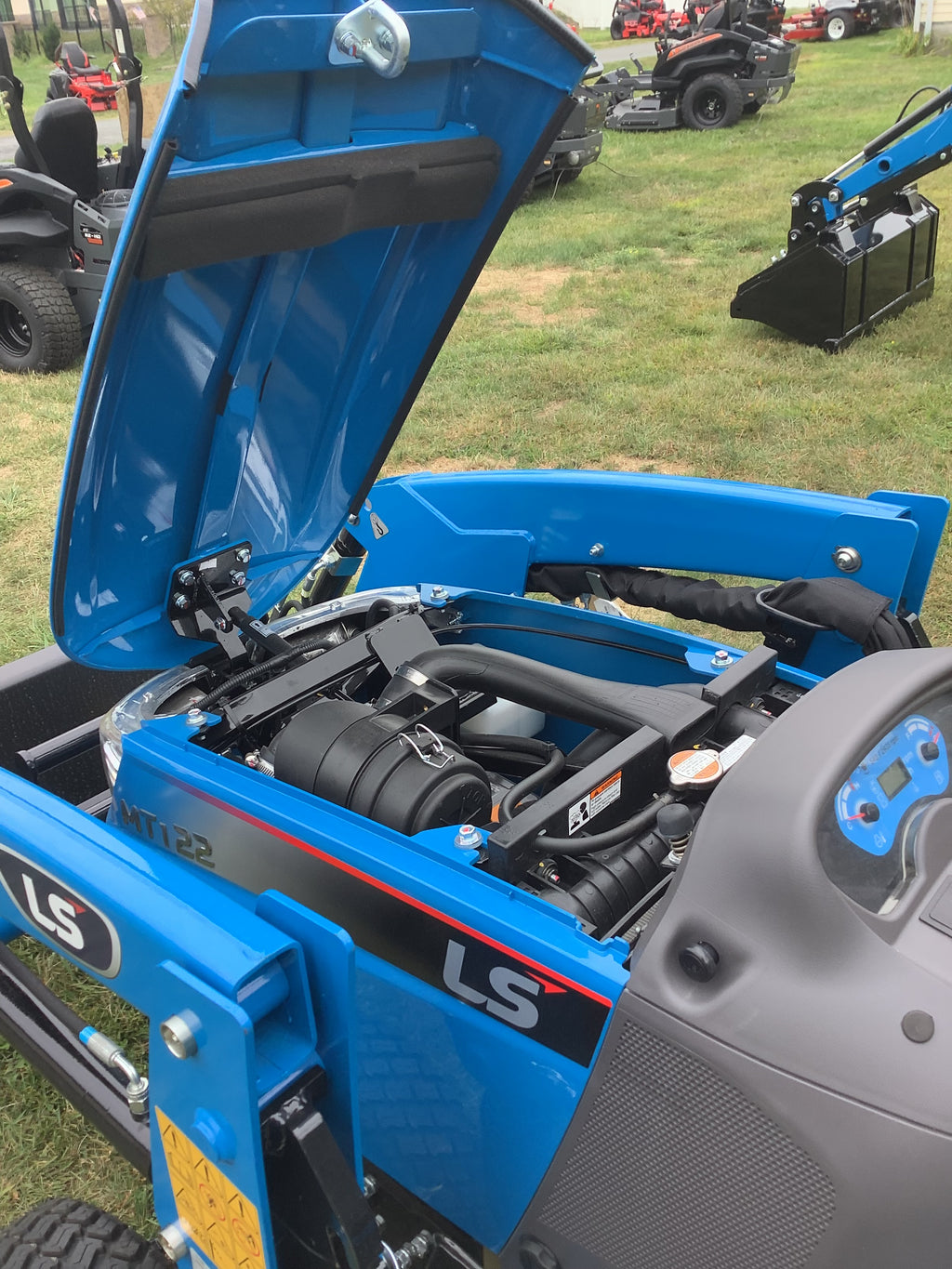

  • Yanmar Tier 4 Engine and Easy Open Hood – Tier 4 engine that provides reliable power and performance. Includes an Easy Open Hood for quick accessibility for easy maintenance.
  • Modern Ergonomic Design – This small chassis compact is ergonomically designed and stylish.
  • Comfortable High-Back Seat – Supportive and comfortable seat reduces fatigue and reverses position for backhoe use.

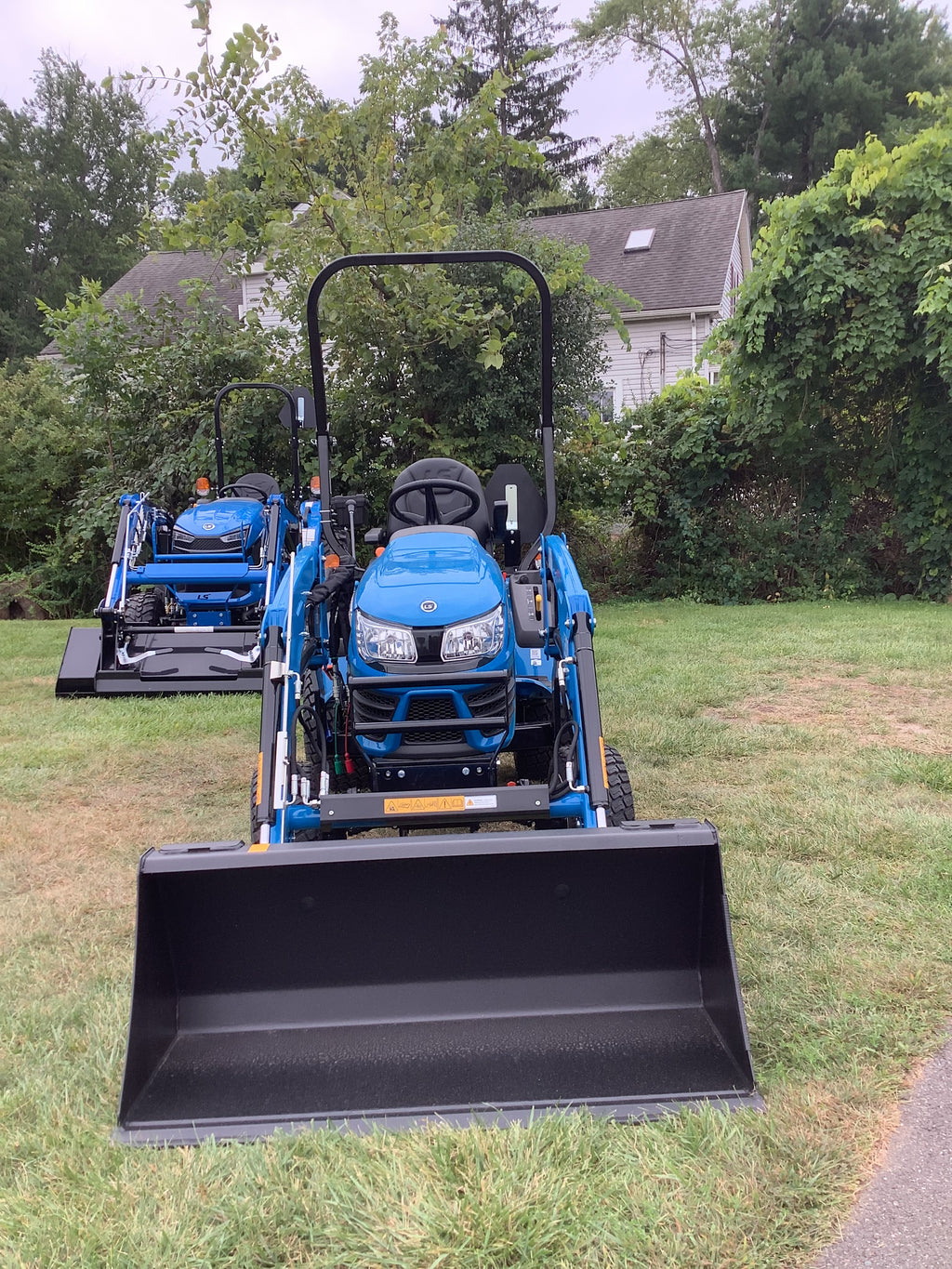

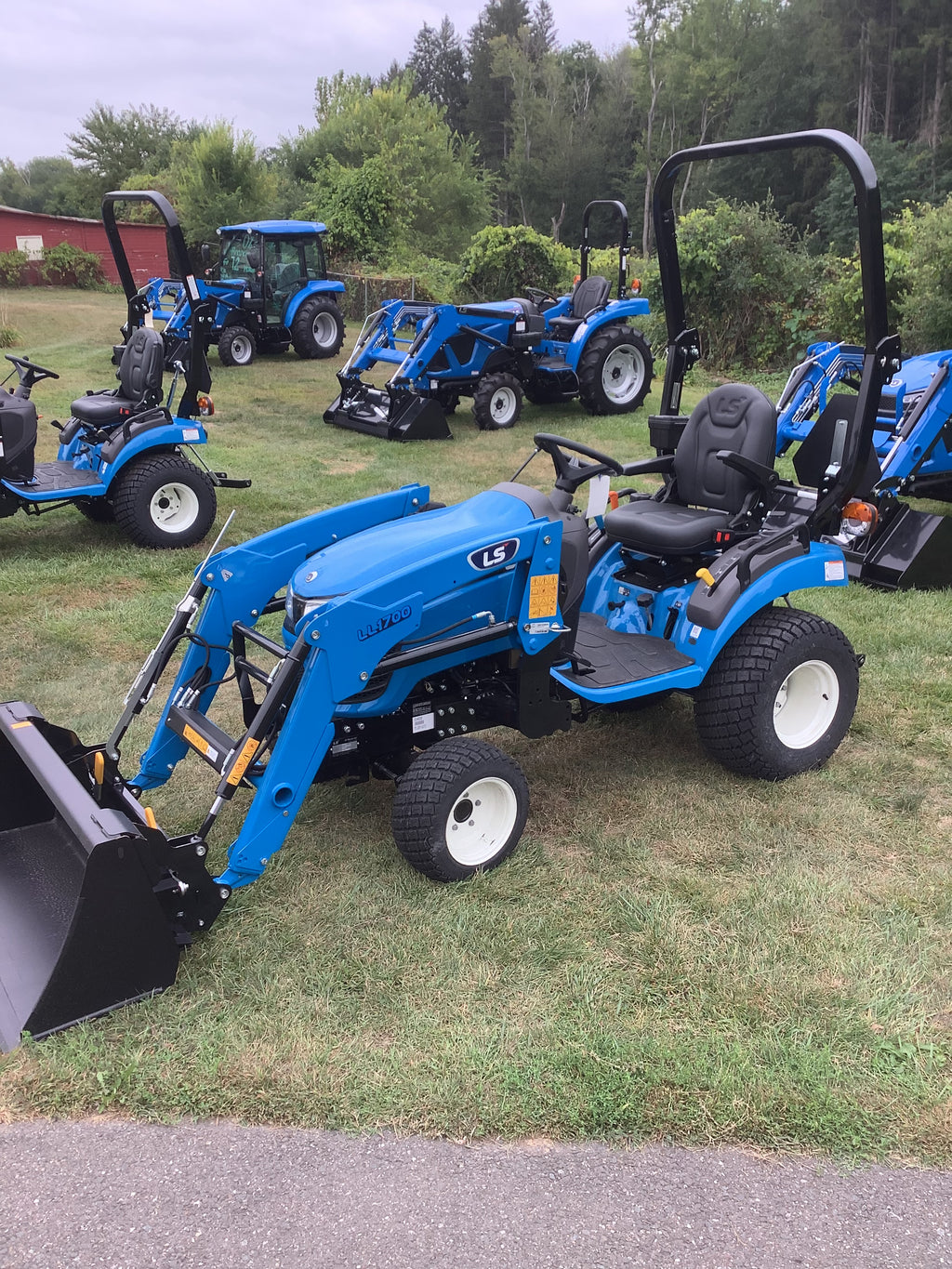

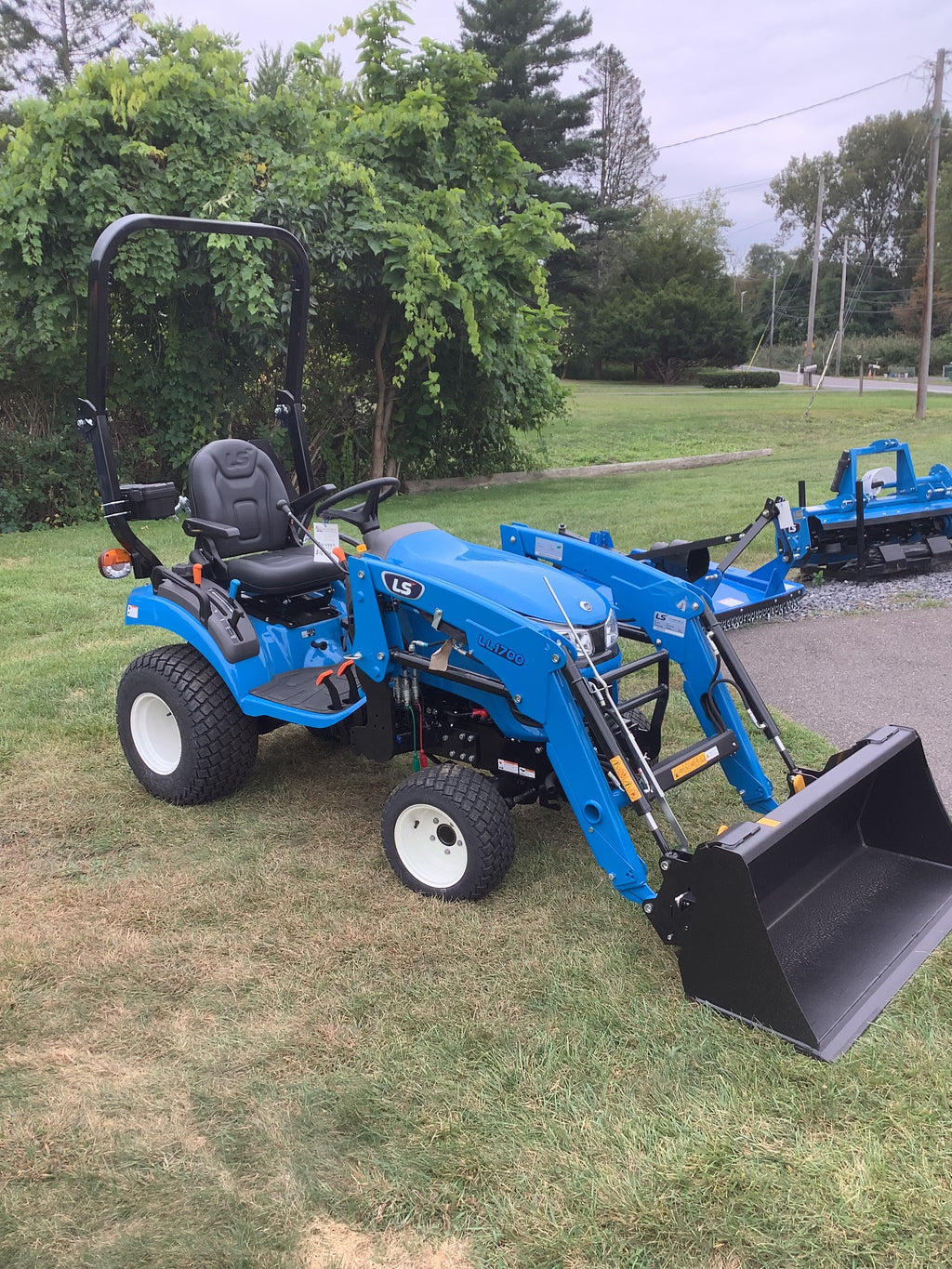

FRONT END LOADER - LL1700

  • Maximum Lift height (in): 74
  • Clearance with Attachment Dump (in): 55
  • Overall Height in Carry Position (in): 41
  • Lift Capacity(@ Pivot pin) (lbs.): 980
  • Breakout Force(@ Pivot pin) (lbs.): 1,470

WARRANTY

Some companies make you pay extra for an extended warranty. LS Tractor offers a 6-year limited powertrain warranty, including parts and labor, on most of the tractors we sell.

2-year bumper to bumper* protection that comes with every LS Tractor. There’s no deductible, and not a lot of exclusions. Compare our short, easy to understand, no-nonsense warranty to the others and see for yourself that LS Tractor has you covered.

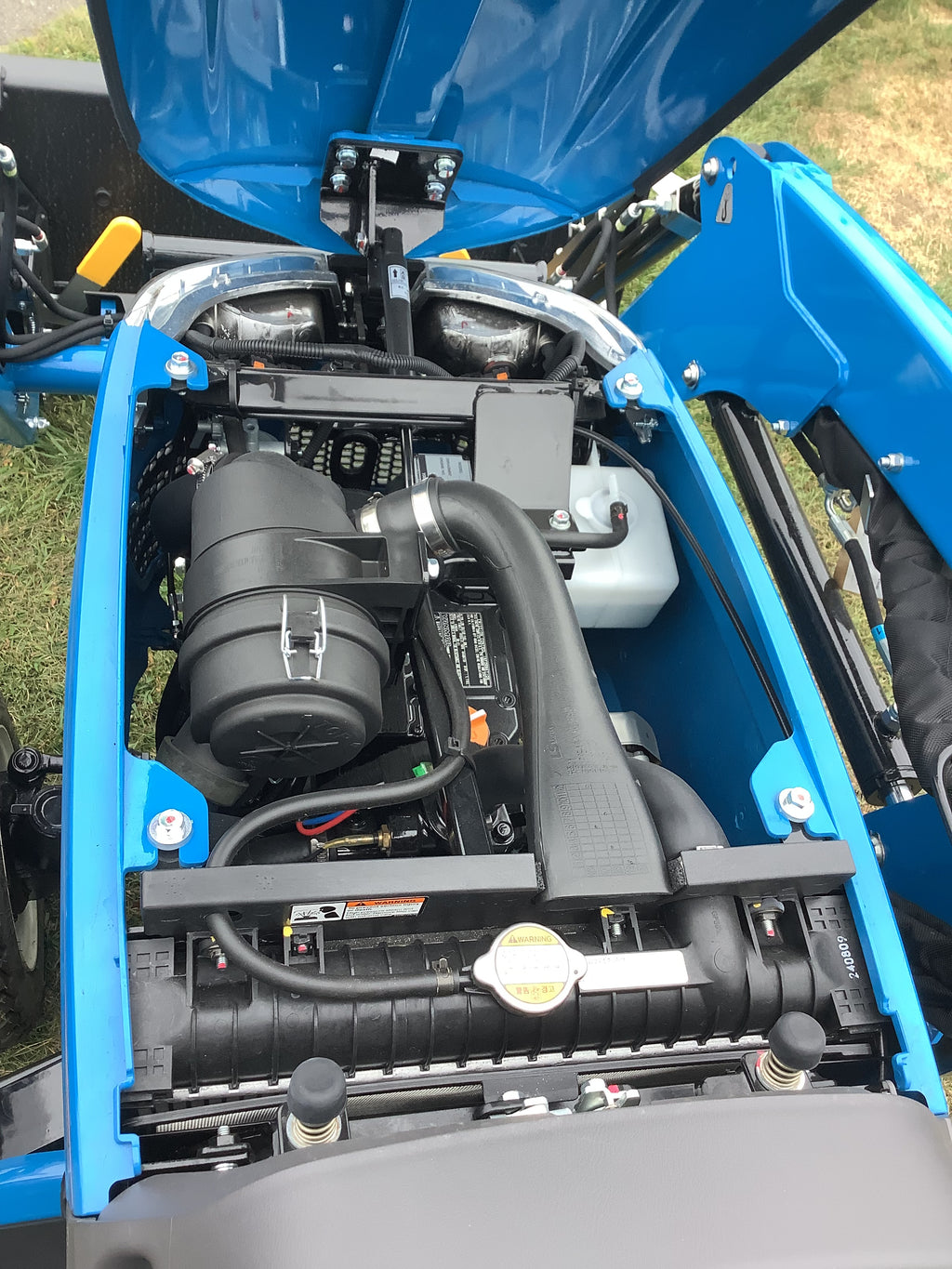

ENGINE

  • Type: 3-cylinder, Indirect-injection, Water-cooled
  • Model (Tier 4 ): Yanmar 3TNV76F
  • Engine HP (Gross): 21.5
  • PTO HP: 15.0
  • Rated Speed (RPM): 3,000
  • Displacement (cu in.): 68.0
  • Fuel Tank Capacity (gal): 6.6
  • Alternator (V-A): 12V – 40

DRIVE TRAIN

  • Transmission: Hydrostatic Drive
  • No. of Speeds: 2 Ranges
  • Brakes: Wet, Multi-Disc
  • Steering: Hydrostatic Power Steering

PTO

  • Type: Independent
  • Mid PTO: Standard (2500 rpm)
  • Rear PTO: Standard (540 rpm)

HYDRAULIC SYSTEM

  • Implement pump (gpm): 4.6
  • Steering pump (gpm): 2.1
  • Total flow (gpm): 6.7
  • Category, 3 pt hitch: CAT 1
  • Hitch lift Capacity (lbs.) (Hitch End) 970 (728 @ 24”)
  • Lift control type: Position

DIMENSION

  • Overall length (Bumper to link, in.): 97
  • Wheelbase (in.): 56
  • Min. overall width with IND tires (in.): 47
  • Height to top of ROPS (in.): 87

TIRE SIZE

  • Industrial Front/Rear: 18×18.5 – 10/26 x 12.0 – 12
  • Versa Turf Front/Rear: 18×18.5 – 10/26 x 12.0 – 12

WEIGHT

  • Total weight without ballast (lbs.): 1,433
